cangine::PanelComponent Class Reference

Container component that positions child objects relative to itself. More...

#include <panel_component.hpp>

Inheritance diagram for cangine::PanelComponent:

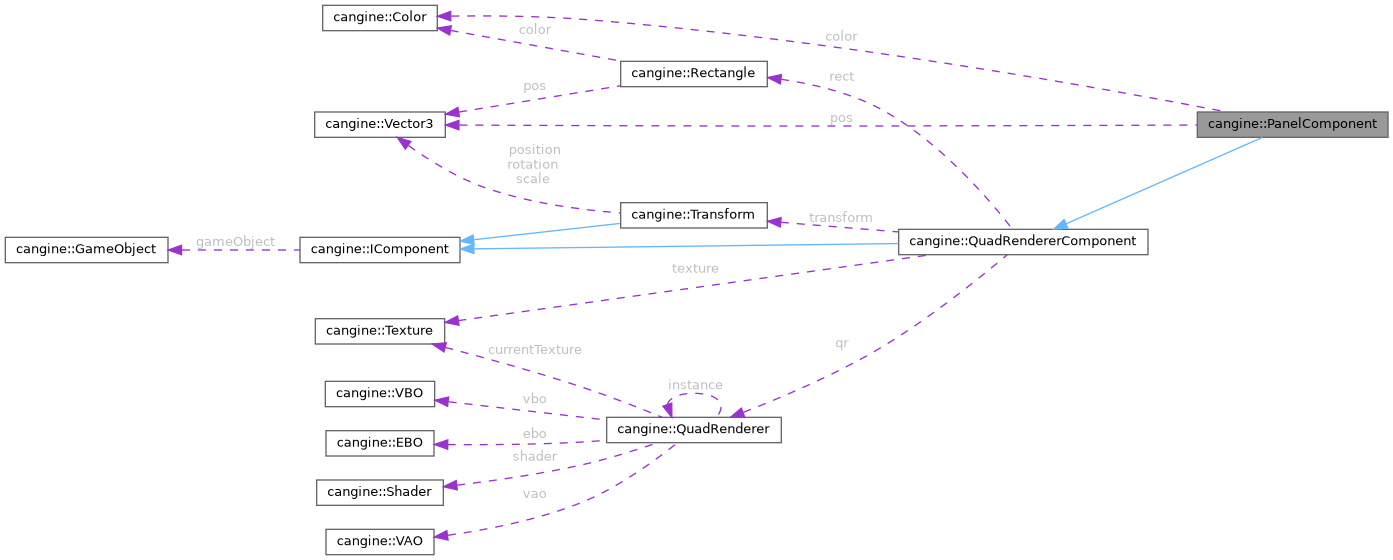

Collaboration diagram for cangine::PanelComponent:

Public Member Functions
void	registerChild (GameObject *childIn)
	Registers a child at a zero offset.
void	registerChild (PanelChild *childIn)
	Registers a child with a predefined offset.
void	firstFrame () override
	Called once before the first frame update.
void	frame (double _dt) override
	Called every frame to update the component.
void	setRectColor (Color colorIn) override
	Sets the rectangle fill color.
void	setRectWidth (int widthIn) override
	Sets the rectangle width.
void	setRectHeight (int heightIn) override
	Sets the rectangle height.
void	setOffset (GameObject *gameobject, Vector3 offsetIn)
	Sets the offset for a child object.
void	setOffset (PanelChild *panelChild, Vector3 offsetIn)
	Sets the offset for a child descriptor.
PanelChild *	getPanelObject (GameObject *gameObject)
	Finds the child descriptor for a game object.
Vector3	getWorldPosition (GameObject *gameObject)
	Computes a child's world position (panel position + offset).
Vector3	getOffset (GameObject *go)
	Returns a child's offset relative to the panel.
	~PanelComponent ()
Public Member Functions inherited from cangine::QuadRendererComponent
void	firstFrame () override
	Called once before the first frame update.
void	frame (double deltaTime) override
	Called every frame to update the component.
virtual void	setTexture (Texture &t)
	Sets the texture applied to the quad.
Rectangle *	getRect ()
	Returns the underlying rectangle.
Vector3	getRectPos ()
	Returns the rectangle's position.
Vector2	getRectSize ()
	Returns the rectangle's size.
Public Member Functions inherited from cangine::IComponent
	IComponent (GameObject *gameObject=nullptr)
	Constructs the component, optionally bound to a game object.
virtual	~IComponent ()
GameObject *	getGameObject () const
	Returns the game object this component is attached to.
virtual void	onMouseEvent (const MouseEvent *e)
	Called when a mouse event is dispatched to the owning object.

Public Attributes
float	padding = 5
	Inner padding in pixels.
float	width = 350
	Panel width in pixels.
float	height = 150
	Panel height in pixels.
Color	color = Color(53, 53, 53, 1)
	Panel background color.
Public Attributes inherited from cangine::IComponent
bool	isUnique = true
	If true, only one of this component type may exist per object.

Private Attributes
std::vector< PanelChild * >	children
	Registered children and their offsets.
Vector3	pos
	Panel position used as the offset origin.

Friends
class	Panel

Additional Inherited Members
Protected Attributes inherited from cangine::QuadRendererComponent
QuadRenderer *	qr
	Renderer used to draw the quad.
Texture *	texture
	Texture applied to the quad, if any.
Transform *	transform
	Cached transform of the owning object.
Rectangle	rect
	Rectangle geometry to draw.

Detailed Description

Container component that positions child objects relative to itself.

Draws a panel rectangle (via QuadRendererComponent) and keeps each registered child positioned at its stored offset, so moving the panel moves its children.

Constructor & Destructor Documentation

~PanelComponent()

cangine::PanelComponent::~PanelComponent

(

)

Member Function Documentation

firstFrame()

void cangine::PanelComponent::firstFrame ( )

overridevirtual

Called once before the first frame update.

Reimplemented from cangine::IComponent.

frame()

void cangine::PanelComponent::frame ( double  deltaTime )

overridevirtual

Called every frame to update the component.

Parameters

deltaTime

Seconds elapsed since the previous frame.

Reimplemented from cangine::IComponent.

getOffset()

Vector3 cangine::PanelComponent::getOffset

(

GameObject *

go

)

Returns a child's offset relative to the panel.

Parameters

go	Child object to query.

Returns

The child's offset.

getPanelObject()

PanelChild * cangine::PanelComponent::getPanelObject

(

GameObject *

gameObject

)

Finds the child descriptor for a game object.

Parameters

gameObject

Object to look up.

Returns

The matching PanelChild, or nullptr if not a child.

getWorldPosition()

Vector3 cangine::PanelComponent::getWorldPosition

(

GameObject *

gameObject

)

Computes a child's world position (panel position + offset).

Parameters

gameObject

Child object to query.

Returns

The child's world position.

registerChild() [1/2]

void cangine::PanelComponent::registerChild

(

GameObject *

childIn

)

Registers a child at a zero offset.

Parameters

childIn

Child game object to add.

registerChild() [2/2]

void cangine::PanelComponent::registerChild

(

PanelChild *

childIn

)

Registers a child with a predefined offset.

Parameters

childIn

Child descriptor (object + offset) to add.

setOffset() [1/2]

void cangine::PanelComponent::setOffset	(	GameObject *	gameobject,
		Vector3	offsetIn
	)

Sets the offset for a child object.

Parameters

gameobject	Child object to reposition.
offsetIn	New offset relative to the panel.

setOffset() [2/2]

void cangine::PanelComponent::setOffset	(	PanelChild *	panelChild,
		Vector3	offsetIn
	)

Sets the offset for a child descriptor.

Parameters

panelChild	Child descriptor to reposition.
offsetIn	New offset relative to the panel.

setRectColor()

void cangine::PanelComponent::setRectColor ( Color  colorIn )

overridevirtual

Sets the rectangle fill color.

Parameters

colorIn

New color.

Reimplemented from cangine::QuadRendererComponent.

setRectHeight()

void cangine::PanelComponent::setRectHeight ( int  heightIn )

overridevirtual

Sets the rectangle height.

Parameters

heightIn

New height.

Reimplemented from cangine::QuadRendererComponent.

setRectWidth()

void cangine::PanelComponent::setRectWidth ( int  widthIn )

overridevirtual

Sets the rectangle width.

Parameters

widthIn

New width.

Reimplemented from cangine::QuadRendererComponent.

Friends And Related Symbol Documentation

Panel

friend class Panel

friend

Member Data Documentation

children

std::vector<PanelChild*> cangine::PanelComponent::children

private

Registered children and their offsets.

color

Color cangine::PanelComponent::color = Color(53, 53, 53, 1)

Panel background color.

height

float cangine::PanelComponent::height = 150

Panel height in pixels.

padding

float cangine::PanelComponent::padding = 5

Inner padding in pixels.

pos

Vector3 cangine::PanelComponent::pos

private

Panel position used as the offset origin.

width

float cangine::PanelComponent::width = 350

Panel width in pixels.

---

The documentation for this class was generated from the following files:

• cangine/src/cangine/engine/components/ui/panel_component.hpp
• cangine/src/cangine/engine/components/ui/panel_component.cpp
