cangine::Panel Class Reference

Container game object that groups and positions child objects. More...

#include <panel_object.hpp>

Inheritance diagram for cangine::Panel:

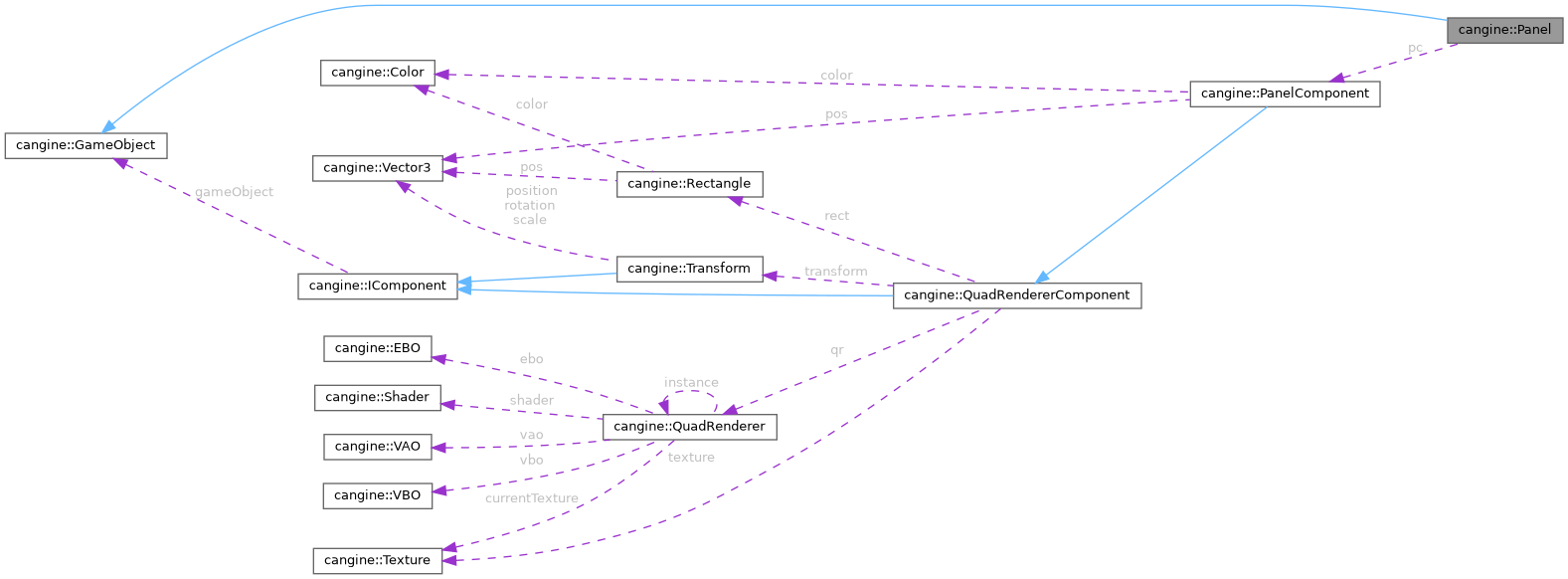

Collaboration diagram for cangine::Panel:

Public Member Functions
	Panel (int padding=5)
	Constructs a panel.
void	onDisable () override
	Called when the object becomes inactive.
void	onEnable () override
	Called when the object becomes active.
void	setPadding (int paddingIn)
	Sets the inner padding.
void	registerChild (GameObject *childIn)
	Adds a child object to the panel.
void	setRectColor (Color colorIn)
	Sets the panel background color.
void	setRectWidth (int widthIn)
	Sets the panel width.
void	setRectHeight (int heightIn)
	Sets the panel height.
void	setOffset (GameObject *go, Vector3 offset)
	Sets a child's offset relative to the panel.
Vector3	getOffset (GameObject *go)
	Returns a child's offset relative to the panel.
Vector2	getRectSize ()
	Returns the panel's size.
Public Member Functions inherited from cangine::GameObject
	GameObject ()
virtual	~GameObject ()
virtual void	onUpdate (double deltaTime)
	Per-frame update hook.
virtual void	onMouseEvent (const MouseEvent *e)
	Mouse event hook.
void	destroy ()
	Marks the object for destruction by the ObjectManager.
template<typename T >
void	appendComponent (T *component)
	Attaches an existing component to this object.
template<typename T >
void	destroyComponent ()
	Destroys and removes the first component of a type.
template<typename T >
T *	getComponent ()
	Returns the first attached component of a type.
template<typename T >
std::vector< T * >	getComponents ()
	Returns all attached components of a type.
template<typename T , typename... Args>
T *	newComponent (Args &&... args)
	Constructs a component in place and attaches it.
void	setActive (bool a)
	Activates or deactivates the object.
bool	isActive ()
	Reports whether the object is active.

Private Attributes
PanelComponent *	pc = nullptr
	Component implementing panel layout.
std::unordered_set< PanelChild * >	notActive
	Children that were inactive before the panel was disabled.

Detailed Description

Container game object that groups and positions child objects.

Backed by a PanelComponent: children are placed relative to the panel, and enabling/disabling the panel cascades to its children.

Constructor & Destructor Documentation

Panel()

cangine::Panel::Panel

(

int

padding = 5

)

Constructs a panel.

Parameters

padding

Inner padding in pixels.

Member Function Documentation

getOffset()

Vector3 cangine::Panel::getOffset

(

GameObject *

go

)

Returns a child's offset relative to the panel.

Parameters

go	Child object to query.

Returns

The child's offset.

getRectSize()

Vector2 cangine::Panel::getRectSize

(

)

Returns the panel's size.

Returns

Width and height as a vector.

onDisable()

void cangine::Panel::onDisable ( )

overridevirtual

Called when the object becomes inactive.

Reimplemented from cangine::GameObject.

onEnable()

void cangine::Panel::onEnable ( )

overridevirtual

Called when the object becomes active.

Reimplemented from cangine::GameObject.

registerChild()

void cangine::Panel::registerChild

(

GameObject *

childIn

)

Adds a child object to the panel.

Parameters

childIn

Child game object to add.

setOffset()

void cangine::Panel::setOffset	(	GameObject *	go,
		Vector3	offset
	)

Sets a child's offset relative to the panel.

Parameters

go	Child object to reposition.
offset	New offset.

setPadding()

void cangine::Panel::setPadding

(

int

paddingIn

)

Sets the inner padding.

Parameters

paddingIn

New padding in pixels.

setRectColor()

void cangine::Panel::setRectColor

(

Color

colorIn

)

Sets the panel background color.

Parameters

colorIn

New color.

setRectHeight()

void cangine::Panel::setRectHeight

(

int

heightIn

)

Sets the panel height.

Parameters

heightIn

New height in pixels.

setRectWidth()

void cangine::Panel::setRectWidth

(

int

widthIn

)

Sets the panel width.

Parameters

widthIn

New width in pixels.

Member Data Documentation

notActive

std::unordered_set<PanelChild*> cangine::Panel::notActive

private

Children that were inactive before the panel was disabled.

pc

PanelComponent* cangine::Panel::pc = nullptr

private

Component implementing panel layout.

---

The documentation for this class was generated from the following files:

• cangine/src/cangine/engine/gameobjects/ui/panel_object.hpp
• cangine/src/cangine/engine/gameobjects/ui/panel_object.cpp
