cangine::QuadRenderer Class Reference

Batched renderer for textured quads (rectangles). More...

#include <quad_renderer.hpp>

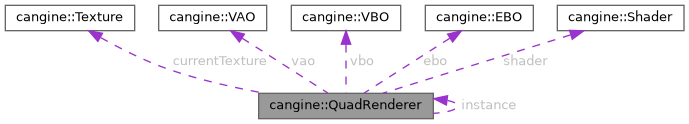

Collaboration diagram for cangine::QuadRenderer:

Public Member Functions
	QuadRenderer (Shader *shader)
	Constructs the renderer with a shader.
void	beginFrame ()
	Resets the batch at the start of a frame.
void	draw (const Transform &transform, const Rectangle &r, bool normalize=true)
	Adds a transformed rectangle to the current batch.
void	draw (const Rectangle &r, bool normalize=true)
	Adds a rectangle to the current batch.
void	flush ()
	Submits the accumulated batch to the GPU.
void	setTexture (Texture *t, bool mono=false)
	Binds a texture for subsequent quads, flushing if it changes.
void	setShader (Shader *shader)
	Replaces the shader used for drawing.

Private Attributes
bool	currentMono = false
	Whether the bound texture is single-channel.
Texture *	currentTexture = nullptr
	Currently bound texture, if any.
std::vector< Vertex >	vertices
	Accumulated vertices for the current batch.
uint32_t	quadCount = 0
	Number of quads in the current batch.
VAO	vao
	Vertex array describing the layout.
VBO	vbo
	Vertex buffer holding the batched data.
EBO	ebo
	Index buffer for the quads.
Shader *	shader
	Shader used to draw the quads.

Static Private Attributes
static QuadRenderer *	instance = nullptr
	Singleton instance.
static constexpr uint32_t	MAX_QUADS = 10000
	Maximum quads per batch.
static constexpr uint32_t	MAX_VERTICES = MAX_QUADS * 4
	Vertex capacity (4 per quad).
static constexpr uint32_t	MAX_INDICES = MAX_QUADS * 6
	Index capacity (6 per quad).

Detailed Description

Batched renderer for textured quads (rectangles).

Accumulates up to MAX_QUADS quads per batch and renders them with a single draw call. Supports an optional bound texture and a monochrome mode used for glyph rendering.

Constructor & Destructor Documentation

QuadRenderer()

cangine::QuadRenderer::QuadRenderer

(

Shader *

shader

)

Constructs the renderer with a shader.

Parameters

shader

Shader used for drawing quads.

Member Function Documentation

beginFrame()

void cangine::QuadRenderer::beginFrame

(

)

Resets the batch at the start of a frame.

draw() [1/2]

void cangine::QuadRenderer::draw	(	const Rectangle &	r,
		bool	normalize = true
	)

Adds a rectangle to the current batch.

Parameters

r	Rectangle geometry to draw.
normalize	If true, positions are normalized to clip space.

draw() [2/2]

void cangine::QuadRenderer::draw	(	const Transform &	transform,
		const Rectangle &	r,
		bool	normalize = true
	)

Adds a transformed rectangle to the current batch.

Parameters

transform	Transform applied to the rectangle.
r	Rectangle geometry to draw.
normalize	If true, positions are normalized to clip space.

flush()

void cangine::QuadRenderer::flush

(

)

Submits the accumulated batch to the GPU.

setShader()

void cangine::QuadRenderer::setShader

(

Shader *

shader

)

Replaces the shader used for drawing.

Parameters

shader

New shader to use.

setTexture()

void cangine::QuadRenderer::setTexture	(	Texture *	t,
		bool	mono = false
	)

Binds a texture for subsequent quads, flushing if it changes.

Parameters

t	Texture to bind.
mono	If true, treat the texture as single-channel.

Member Data Documentation

currentMono

bool cangine::QuadRenderer::currentMono = false

private

Whether the bound texture is single-channel.

currentTexture

Texture* cangine::QuadRenderer::currentTexture = nullptr

private

Currently bound texture, if any.

ebo

EBO cangine::QuadRenderer::ebo

private

Index buffer for the quads.

instance

QuadRenderer * cangine::QuadRenderer::instance = nullptr

staticprivate

Singleton instance.

MAX_INDICES

constexpr uint32_t cangine::QuadRenderer::MAX_INDICES = MAX_QUADS * 6

staticconstexprprivate

Index capacity (6 per quad).

MAX_QUADS

constexpr uint32_t cangine::QuadRenderer::MAX_QUADS = 10000

staticconstexprprivate

Maximum quads per batch.

MAX_VERTICES

constexpr uint32_t cangine::QuadRenderer::MAX_VERTICES = MAX_QUADS * 4

staticconstexprprivate

Vertex capacity (4 per quad).

quadCount

uint32_t cangine::QuadRenderer::quadCount = 0

private

Number of quads in the current batch.

shader

Shader* cangine::QuadRenderer::shader

private

Shader used to draw the quads.

vao

VAO cangine::QuadRenderer::vao

private

Vertex array describing the layout.

vbo

VBO cangine::QuadRenderer::vbo

private

Vertex buffer holding the batched data.

vertices

std::vector<Vertex> cangine::QuadRenderer::vertices

private

Accumulated vertices for the current batch.

---

The documentation for this class was generated from the following files:

• cangine/src/cangine/render/renderer/quad_renderer.hpp
• cangine/src/cangine/render/renderer/quad_renderer.cpp
