cangine::Transform Class Reference

Component holding an object's position, rotation and scale. More...

#include <transform_component.hpp>

Inheritance diagram for cangine::Transform:

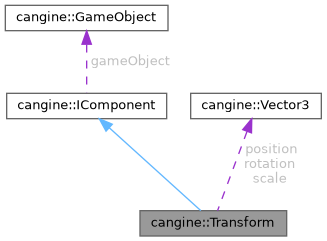

Collaboration diagram for cangine::Transform:

Public Member Functions
	~Transform () override
void	firstFrame () override
	Called once before the first frame update.
void	setPosition (Vector3 positionIn)
	Sets the position.
Vector3	getPosition () const
	Returns the position.
void	setRotation (Vector3 rotationIn)
	Sets the rotation.
Vector3	getRotation () const
	Returns the rotation.
void	setScale (Vector3 scaleIn)
	Sets the scale.
Vector3	getScale () const
	Returns the scale.
Public Member Functions inherited from cangine::IComponent
	IComponent (GameObject *gameObject=nullptr)
	Constructs the component, optionally bound to a game object.
virtual	~IComponent ()
GameObject *	getGameObject () const
	Returns the game object this component is attached to.
virtual void	frame (double deltaTime)
	Called every frame to update the component.
virtual void	onMouseEvent (const MouseEvent *e)
	Called when a mouse event is dispatched to the owning object.

Static Public Member Functions
static Transform *	from (GameObject *go)
	Fetches the Transform component of a game object.
static Vector3	posFrom (GameObject *go)
	Reads the position of a game object's Transform.
static Vector3	rotFrom (GameObject *go)
	Reads the rotation of a game object's Transform.
static Vector3	scaleFrom (GameObject *go)
	Reads the scale of a game object's Transform.
static void	posFor (GameObject *go, Vector3 pos)
	Sets the position on a game object's Transform.
static void	rotFor (GameObject *go, Vector3 rot)
	Sets the rotation on a game object's Transform.
static void	scaleFor (GameObject *go, Vector3 scale)
	Sets the scale on a game object's Transform.

Private Attributes
Vector3	position
	World position.
Vector3	rotation
	Rotation in degrees (per axis).
Vector3	scale
	Scale factor per axis.

Additional Inherited Members
Public Attributes inherited from cangine::IComponent
bool	isUnique = true
	If true, only one of this component type may exist per object.

Detailed Description

Component holding an object's position, rotation and scale.

Every spatial game object carries a Transform. Convenience static helpers (from, posFrom, posFor, ...) read or write the transform of a given GameObject without manually fetching the component.

Constructor & Destructor Documentation

~Transform()

cangine::Transform::~Transform ( )

overridedefault

Member Function Documentation

firstFrame()

void cangine::Transform::firstFrame ( )

overridevirtual

Called once before the first frame update.

Reimplemented from cangine::IComponent.

from()

static Transform * cangine::Transform::from ( GameObject *  go )

inlinestatic

Fetches the Transform component of a game object.

Parameters

go	Game object to query.

Returns

The object's Transform component.

getPosition()

Vector3 cangine::Transform::getPosition

(

)

const

Returns the position.

Returns

Current position.

getRotation()

Vector3 cangine::Transform::getRotation

(

)

const

Returns the rotation.

Returns

Current rotation in degrees.

getScale()

Vector3 cangine::Transform::getScale

(

)

const

Returns the scale.

Returns

Current scale factor per axis.

posFor()

static void cangine::Transform::posFor ( GameObject *  go, Vector3  pos  )

inlinestatic

Sets the position on a game object's Transform.

Parameters

go	Game object to modify.
pos	New position.

posFrom()

static Vector3 cangine::Transform::posFrom ( GameObject *  go )

inlinestatic

Reads the position of a game object's Transform.

Parameters

go	Game object to query.

Returns

The object's position.

rotFor()

static void cangine::Transform::rotFor ( GameObject *  go, Vector3  rot  )

inlinestatic

Sets the rotation on a game object's Transform.

Parameters

go	Game object to modify.
rot	New rotation in degrees.

rotFrom()

static Vector3 cangine::Transform::rotFrom ( GameObject *  go )

inlinestatic

Reads the rotation of a game object's Transform.

Parameters

go	Game object to query.

Returns

The object's rotation in degrees.

scaleFor()

static void cangine::Transform::scaleFor ( GameObject *  go, Vector3  scale  )

inlinestatic

Sets the scale on a game object's Transform.

Parameters

go	Game object to modify.
scale	New scale factor per axis.

scaleFrom()

static Vector3 cangine::Transform::scaleFrom ( GameObject *  go )

inlinestatic

Reads the scale of a game object's Transform.

Parameters

go	Game object to query.

Returns

The object's scale.

setPosition()

void cangine::Transform::setPosition

(

Vector3

positionIn

)

Sets the position.

Parameters

positionIn

New position.

setRotation()

void cangine::Transform::setRotation

(

Vector3

rotationIn

)

Sets the rotation.

Parameters

rotationIn

New rotation in degrees.

setScale()

void cangine::Transform::setScale

(

Vector3

scaleIn

)

Sets the scale.

Parameters

scaleIn

New scale factor per axis.

Member Data Documentation

position

Vector3 cangine::Transform::position

private

World position.

rotation

Vector3 cangine::Transform::rotation

private

Rotation in degrees (per axis).

scale

Vector3 cangine::Transform::scale

private

Scale factor per axis.

---

The documentation for this class was generated from the following files:

• cangine/src/cangine/engine/components/transform_component.hpp
• cangine/src/cangine/engine/components/transform_component.cpp
