cangine::QuadRendererComponent Class Reference

Component that draws its game object as a textured rectangle. More...

#include <quadrenderer_component.hpp>

Inheritance diagram for cangine::QuadRendererComponent:

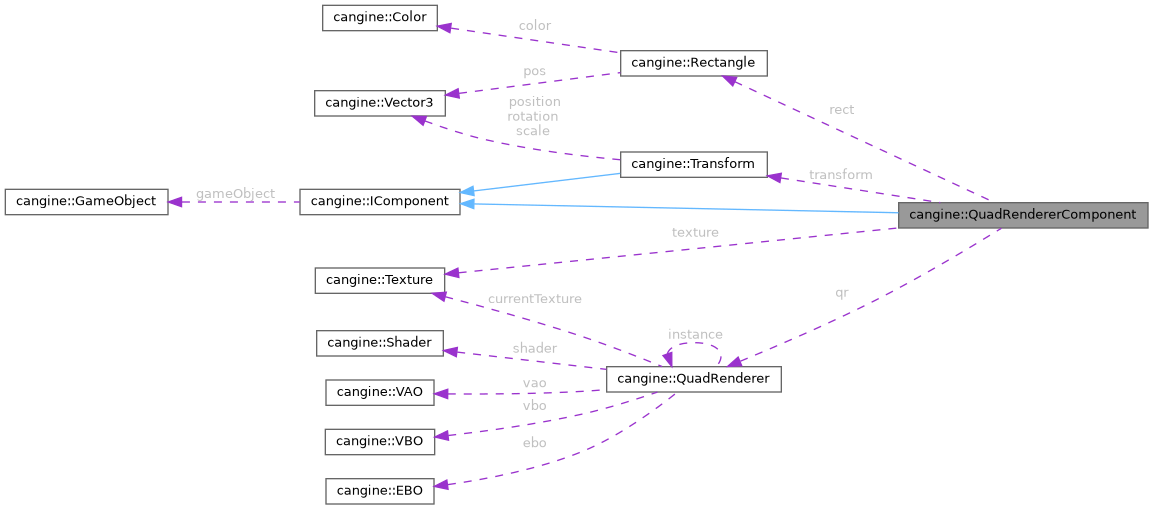

Collaboration diagram for cangine::QuadRendererComponent:

Public Member Functions
void	firstFrame () override
	Called once before the first frame update.
void	frame (double deltaTime) override
	Called every frame to update the component.
virtual void	setTexture (Texture &t)
	Sets the texture applied to the quad.
virtual void	setRectWidth (int widthIn)
	Sets the rectangle width.
virtual void	setRectHeight (int heightIn)
	Sets the rectangle height.
virtual void	setRectColor (Color colorIn)
	Sets the rectangle fill color.
Rectangle *	getRect ()
	Returns the underlying rectangle.
Vector3	getRectPos ()
	Returns the rectangle's position.
Vector2	getRectSize ()
	Returns the rectangle's size.
Public Member Functions inherited from cangine::IComponent
	IComponent (GameObject *gameObject=nullptr)
	Constructs the component, optionally bound to a game object.
virtual	~IComponent ()
GameObject *	getGameObject () const
	Returns the game object this component is attached to.
virtual void	onMouseEvent (const MouseEvent *e)
	Called when a mouse event is dispatched to the owning object.

Protected Attributes
QuadRenderer *	qr
	Renderer used to draw the quad.
Texture *	texture
	Texture applied to the quad, if any.
Transform *	transform
	Cached transform of the owning object.
Rectangle	rect
	Rectangle geometry to draw.

Additional Inherited Members
Public Attributes inherited from cangine::IComponent
bool	isUnique = true
	If true, only one of this component type may exist per object.

Detailed Description

Component that draws its game object as a textured rectangle.

Each frame it submits a rectangle (sized/colored via the setters, placed by the object's Transform) to the QuadRenderer.

Member Function Documentation

firstFrame()

void cangine::QuadRendererComponent::firstFrame ( )

overridevirtual

Called once before the first frame update.

Reimplemented from cangine::IComponent.

frame()

void cangine::QuadRendererComponent::frame ( double  deltaTime )

overridevirtual

Called every frame to update the component.

Parameters

deltaTime

Seconds elapsed since the previous frame.

Reimplemented from cangine::IComponent.

getRect()

Rectangle * cangine::QuadRendererComponent::getRect

(

)

Returns the underlying rectangle.

Returns

Pointer to the rectangle geometry.

getRectPos()

Vector3 cangine::QuadRendererComponent::getRectPos

(

)

Returns the rectangle's position.

Returns

Rectangle position.

getRectSize()

Vector2 cangine::QuadRendererComponent::getRectSize

(

)

Returns the rectangle's size.

Returns

Width and height as a vector.

setRectColor()

void cangine::QuadRendererComponent::setRectColor ( Color  colorIn )

virtual

Sets the rectangle fill color.

Parameters

colorIn

New color.

Reimplemented in cangine::PanelComponent.

setRectHeight()

void cangine::QuadRendererComponent::setRectHeight ( int  heightIn )

virtual

Sets the rectangle height.

Parameters

heightIn

New height.

Reimplemented in cangine::PanelComponent.

setRectWidth()

void cangine::QuadRendererComponent::setRectWidth ( int  widthIn )

virtual

Sets the rectangle width.

Parameters

widthIn

New width.

Reimplemented in cangine::PanelComponent.

setTexture()

void cangine::QuadRendererComponent::setTexture ( Texture &  t )

virtual

Sets the texture applied to the quad.

Parameters

t	Texture to use.

Member Data Documentation

qr

QuadRenderer* cangine::QuadRendererComponent::qr

protected

Renderer used to draw the quad.

rect

Rectangle cangine::QuadRendererComponent::rect

protected

Rectangle geometry to draw.

texture

Texture* cangine::QuadRendererComponent::texture

protected

Texture applied to the quad, if any.

transform

Transform* cangine::QuadRendererComponent::transform

protected

Cached transform of the owning object.

---

The documentation for this class was generated from the following files:

• cangine/src/cangine/engine/components/quadrenderer_component.hpp
• cangine/src/cangine/engine/components/quadrenderer_component.cpp
