cangine::InputFieldComponent Class Reference

Editable single-line text input field. More...

#include <inputfield_component.hpp>

Inheritance diagram for cangine::InputFieldComponent:

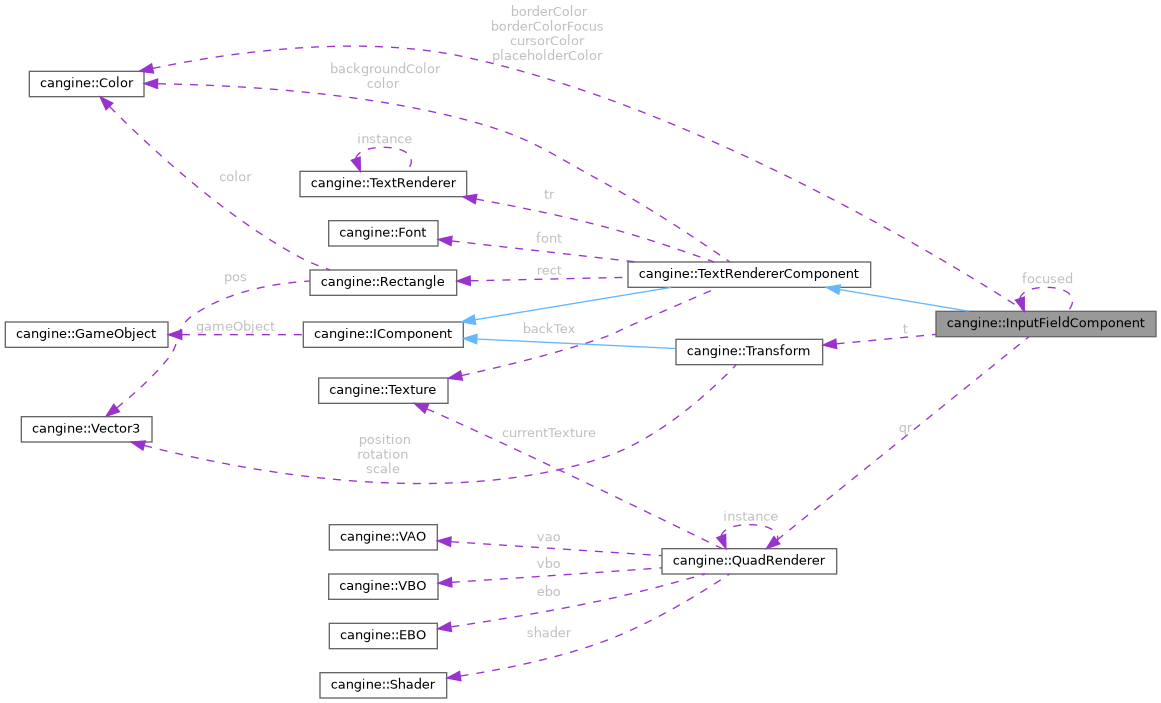

Collaboration diagram for cangine::InputFieldComponent:

Public Member Functions
	InputFieldComponent ()
	~InputFieldComponent ()
void	firstFrame () override
	Called once before the first frame update.
void	frame (double dt) override
	Called every frame to update the component.
void	updateView ()
	Recomputes the visible text window from the caret position.
void	inputEventHandler (std::string s)
	Inserts typed characters at the caret.
void	keyEventHandler (KeyEvent event)
	Handles editing keys (arrows, backspace, enter, ...).
void	onMouseEvent (const MouseEvent *e) override
	Called when a mouse event is dispatched to the owning object.
Public Member Functions inherited from cangine::TextRendererComponent
void	firstFrame () override
	Called once before the first frame update.
void	frame (double dt) override
	Called every frame to update the component.
Vector2	getSize ()
	Returns the rendered size of the current text.
void	setFontHeight (int heightIn)
	Sets the font's pixel height (reloads the font).
int	getFontHeight ()
	Returns the current font pixel height.
void	setBackTexture (Texture *textureIn)
	Sets the background texture drawn behind the text.
Texture *	getBackTexture () const
	Returns the background texture.
Public Member Functions inherited from cangine::IComponent
	IComponent (GameObject *gameObject=nullptr)
	Constructs the component, optionally bound to a game object.
virtual	~IComponent ()
GameObject *	getGameObject () const
	Returns the game object this component is attached to.

Public Attributes
int	width = 128
	Field width in pixels.
int	height = 25
	Field height in pixels.
std::string	content
	Current text content.
int	cursorpos = 0
	Caret position as an index into content.
std::function< void(std::string)>	onReturn = nullptr
	Called with the content when Enter is pressed.
float	borderWidth
	Border thickness in pixels.
std::string	placeholder
	Text shown when the field is empty.
Color	placeholderColor
	Color of the placeholder text.
Color	borderColor
	Border color when not focused.
Color	borderColorFocus
	Border color when focused.
Color	cursorColor
	Caret color.
Public Attributes inherited from cangine::TextRendererComponent
Color	color
	Text color.
Color	backgroundColor
	Background fill color.
float	backgroundPadding
	Padding between text and background edges.
float	scale
	Scale factor applied to the text.
std::string	text
	The string to render.
Rectangle	rect
	Background rectangle geometry.
Public Attributes inherited from cangine::IComponent
bool	isUnique = true
	If true, only one of this component type may exist per object.

Static Public Attributes
static InputFieldComponent *	focused = nullptr
	The currently focused field, or nullptr.

Private Member Functions
void	draw (double dt)
	Draws the field background, border, text and caret.

Private Attributes
float	blinkTimer = 0
	Accumulator driving the caret blink.
size_t	eventHandlerID
	Id of the registered character-event handler.
size_t	keyEventHandlerID
	Id of the registered key-event handler.
size_t	startIdx
	Index of the first visible character (horizontal scroll).
Transform *	t
	Cached transform of the owning object.
QuadRenderer *	qr
	Renderer used to draw border/caret.

Additional Inherited Members
Protected Attributes inherited from cangine::TextRendererComponent
TextRenderer *	tr
	Renderer used to draw the text.
std::string	path
	Path of the loaded font file.
int	fontHeight
	Pixel height the font is loaded at.
Font *	font = nullptr
	Loaded font, or nullptr.
Texture *	backTex = nullptr
	Optional background texture.

Detailed Description

Editable single-line text input field.

Extends TextRendererComponent to capture keyboard/character input, maintain a caret and content string, scroll the visible text, and fire a callback when Enter is pressed. Only one field is focused at a time.

Constructor & Destructor Documentation

InputFieldComponent()

cangine::InputFieldComponent::InputFieldComponent

(

)

~InputFieldComponent()

cangine::InputFieldComponent::~InputFieldComponent

(

)

Member Function Documentation

draw()

void cangine::InputFieldComponent::draw ( double  dt )

private

Draws the field background, border, text and caret.

Parameters

dt	Seconds elapsed since the previous frame.

firstFrame()

void cangine::InputFieldComponent::firstFrame ( )

overridevirtual

Called once before the first frame update.

Reimplemented from cangine::IComponent.

frame()

void cangine::InputFieldComponent::frame ( double  deltaTime )

overridevirtual

Called every frame to update the component.

Parameters

deltaTime

Seconds elapsed since the previous frame.

Reimplemented from cangine::IComponent.

inputEventHandler()

void cangine::InputFieldComponent::inputEventHandler

(

std::string

s

)

Inserts typed characters at the caret.

Parameters

s	UTF-8 text that was typed.

keyEventHandler()

void cangine::InputFieldComponent::keyEventHandler

(

KeyEvent

event

)

Handles editing keys (arrows, backspace, enter, ...).

Parameters

event

The key event.

onMouseEvent()

void cangine::InputFieldComponent::onMouseEvent ( const MouseEvent *  e )

overridevirtual

Called when a mouse event is dispatched to the owning object.

Parameters

e	The mouse event.

Reimplemented from cangine::IComponent.

updateView()

void cangine::InputFieldComponent::updateView

(

)

Recomputes the visible text window from the caret position.

Member Data Documentation

blinkTimer

float cangine::InputFieldComponent::blinkTimer = 0

private

Accumulator driving the caret blink.

borderColor

Color cangine::InputFieldComponent::borderColor

Border color when not focused.

borderColorFocus

Color cangine::InputFieldComponent::borderColorFocus

Border color when focused.

borderWidth

float cangine::InputFieldComponent::borderWidth

Border thickness in pixels.

content

std::string cangine::InputFieldComponent::content

Current text content.

cursorColor

Color cangine::InputFieldComponent::cursorColor

Caret color.

cursorpos

int cangine::InputFieldComponent::cursorpos = 0

Caret position as an index into content.

eventHandlerID

size_t cangine::InputFieldComponent::eventHandlerID

private

Id of the registered character-event handler.

focused

InputFieldComponent * cangine::InputFieldComponent::focused = nullptr

static

The currently focused field, or nullptr.

height

int cangine::InputFieldComponent::height = 25

Field height in pixels.

keyEventHandlerID

size_t cangine::InputFieldComponent::keyEventHandlerID

private

Id of the registered key-event handler.

onReturn

std::function<void(std::string)> cangine::InputFieldComponent::onReturn = nullptr

Called with the content when Enter is pressed.

placeholder

std::string cangine::InputFieldComponent::placeholder

Text shown when the field is empty.

placeholderColor

Color cangine::InputFieldComponent::placeholderColor

Color of the placeholder text.

qr

QuadRenderer* cangine::InputFieldComponent::qr

private

Renderer used to draw border/caret.

startIdx

size_t cangine::InputFieldComponent::startIdx

private

Index of the first visible character (horizontal scroll).

t

Transform* cangine::InputFieldComponent::t

private

Cached transform of the owning object.

width

int cangine::InputFieldComponent::width = 128

Field width in pixels.

---

The documentation for this class was generated from the following files:

• cangine/src/cangine/engine/components/ui/inputfield_component.hpp
• cangine/src/cangine/engine/components/ui/inputfield_component.cpp
