cangine::TextRendererComponent Class Reference

Component that renders a text string, optionally over a background. More...

#include <textrenderer_component.hpp>

Inheritance diagram for cangine::TextRendererComponent:

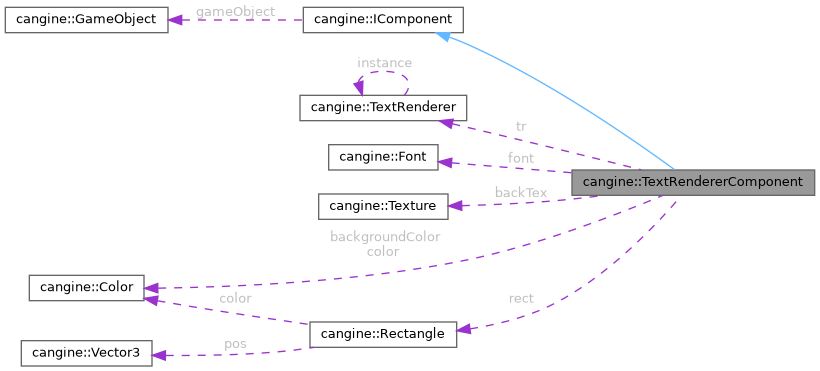

Collaboration diagram for cangine::TextRendererComponent:

Public Member Functions
void	firstFrame () override
	Called once before the first frame update.
void	frame (double dt) override
	Called every frame to update the component.
Vector2	getSize ()
	Returns the rendered size of the current text.
void	setFontHeight (int heightIn)
	Sets the font's pixel height (reloads the font).
int	getFontHeight ()
	Returns the current font pixel height.
void	setBackTexture (Texture *textureIn)
	Sets the background texture drawn behind the text.
Texture *	getBackTexture () const
	Returns the background texture.
Public Member Functions inherited from cangine::IComponent
	IComponent (GameObject *gameObject=nullptr)
	Constructs the component, optionally bound to a game object.
virtual	~IComponent ()
GameObject *	getGameObject () const
	Returns the game object this component is attached to.
virtual void	onMouseEvent (const MouseEvent *e)
	Called when a mouse event is dispatched to the owning object.

Public Attributes
Color	color
	Text color.
Color	backgroundColor
	Background fill color.
float	backgroundPadding
	Padding between text and background edges.
float	scale
	Scale factor applied to the text.
std::string	text
	The string to render.
Rectangle	rect
	Background rectangle geometry.
Public Attributes inherited from cangine::IComponent
bool	isUnique = true
	If true, only one of this component type may exist per object.

Protected Attributes
TextRenderer *	tr
	Renderer used to draw the text.
std::string	path
	Path of the loaded font file.
int	fontHeight
	Pixel height the font is loaded at.
Font *	font = nullptr
	Loaded font, or nullptr.
Texture *	backTex = nullptr
	Optional background texture.

Detailed Description

Component that renders a text string, optionally over a background.

Loads a font, draws text each frame via the TextRenderer, and can paint a colored or textured background rectangle behind the text.

Member Function Documentation

firstFrame()

void cangine::TextRendererComponent::firstFrame ( )

overridevirtual

Called once before the first frame update.

Reimplemented from cangine::IComponent.

frame()

void cangine::TextRendererComponent::frame ( double  deltaTime )

overridevirtual

Called every frame to update the component.

Parameters

deltaTime

Seconds elapsed since the previous frame.

Reimplemented from cangine::IComponent.

getBackTexture()

Texture * cangine::TextRendererComponent::getBackTexture

(

)

const

Returns the background texture.

Returns

Background texture, or nullptr if unset.

getFontHeight()

int cangine::TextRendererComponent::getFontHeight

(

)

Returns the current font pixel height.

Returns

Font height in pixels.

getSize()

Vector2 cangine::TextRendererComponent::getSize

(

)

Returns the rendered size of the current text.

Returns

Width and height the text occupies.

setBackTexture()

void cangine::TextRendererComponent::setBackTexture

(

Texture *

textureIn

)

Sets the background texture drawn behind the text.

Parameters

textureIn

Texture to use, or nullptr for none.

setFontHeight()

void cangine::TextRendererComponent::setFontHeight

(

int

heightIn

)

Sets the font's pixel height (reloads the font).

Parameters

heightIn

New pixel height.

Member Data Documentation

backgroundColor

Color cangine::TextRendererComponent::backgroundColor

Background fill color.

backgroundPadding

float cangine::TextRendererComponent::backgroundPadding

Padding between text and background edges.

backTex

Texture* cangine::TextRendererComponent::backTex = nullptr

protected

Optional background texture.

color

Color cangine::TextRendererComponent::color

Text color.

font

Font* cangine::TextRendererComponent::font = nullptr

protected

Loaded font, or nullptr.

fontHeight

int cangine::TextRendererComponent::fontHeight

protected

Pixel height the font is loaded at.

path

std::string cangine::TextRendererComponent::path

protected

Path of the loaded font file.

rect

Rectangle cangine::TextRendererComponent::rect

Background rectangle geometry.

scale

float cangine::TextRendererComponent::scale

Scale factor applied to the text.

text

std::string cangine::TextRendererComponent::text

The string to render.

tr

TextRenderer* cangine::TextRendererComponent::tr

protected

Renderer used to draw the text.

---

The documentation for this class was generated from the following files:

• cangine/src/cangine/engine/components/textrenderer_component.hpp
• cangine/src/cangine/engine/components/textrenderer_component.cpp
