cangine::Button Class Reference

Clickable button game object with a text label. More...

#include <button_object.hpp>

Inheritance diagram for cangine::Button:

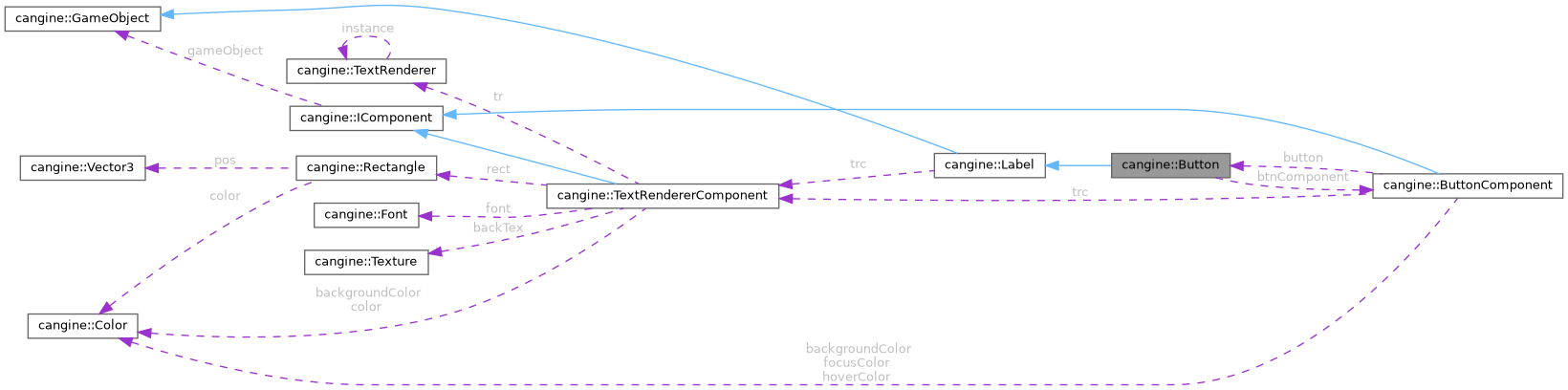

Collaboration diagram for cangine::Button:

Public Member Functions
	Button (std::string text, Vector3 position=Vector3(0, 0, 0), Color foreColor=Colors::BLACK, Color hoverColor=Colors::GRAY, Color focusColor=Colors::DARK_GRAY, Color backgroundColor=Colors::WHITE)
	Constructs a button.
void	registerOnClickEvent (std::function< void(const MouseEvent *)> handler)
	Registers a callback invoked when the button is clicked.
void	setTexture (Texture *textureIn)
	Sets the button's background texture.
Texture *	getTexture ()
	Returns the button's background texture.
Public Member Functions inherited from cangine::Label
	Label (std::string text="Label", Vector3 position=Vector3(0, 0, 80))
	Constructs a label.
std::string	getText ()
	Returns the current text.
Vector2	getSize ()
	Returns the rendered size of the text.
int	getFontHeight ()
	Returns the font pixel height.
void	setText (std::string text)
	Sets the displayed text.
void	setFontHeight (int heightIn)
	Sets the font pixel height.
void	setColor (Color colorIn)
	Sets the text color.
void	setBackgroundColor (Color colorIn)
	Sets the background color behind the text.
TextRendererComponent *	getTextRendererComponent ()
	Returns the underlying text renderer component.
Public Member Functions inherited from cangine::GameObject
	GameObject ()
virtual	~GameObject ()
virtual void	onUpdate (double deltaTime)
	Per-frame update hook.
virtual void	onMouseEvent (const MouseEvent *e)
	Mouse event hook.
virtual void	onDisable ()
	Called when the object becomes inactive.
virtual void	onEnable ()
	Called when the object becomes active.
void	destroy ()
	Marks the object for destruction by the ObjectManager.
template<typename T >
void	appendComponent (T *component)
	Attaches an existing component to this object.
template<typename T >
void	destroyComponent ()
	Destroys and removes the first component of a type.
template<typename T >
T *	getComponent ()
	Returns the first attached component of a type.
template<typename T >
std::vector< T * >	getComponents ()
	Returns all attached components of a type.
template<typename T , typename... Args>
T *	newComponent (Args &&... args)
	Constructs a component in place and attaches it.
void	setActive (bool a)
	Activates or deactivates the object.
bool	isActive ()
	Reports whether the object is active.

Private Member Functions
void	onClick (const MouseEvent *e)
	Invokes all registered click handlers.

Private Attributes
std::vector< std::function< void(const MouseEvent *)> >	onClickHandlers
	Registered click callbacks.
ButtonComponent *	btnComponent
	Component driving button behavior.

Friends
class	ButtonComponent

Detailed Description

Clickable button game object with a text label.

Extends Label with a ButtonComponent for hover/press visuals and lets callers register click handlers.

Constructor & Destructor Documentation

Button()

cangine::Button::Button	(	std::string	text,
		Vector3	position = Vector3(0, 0, 0),
		Color	foreColor = Colors::BLACK,
		Color	hoverColor = Colors::GRAY,
		Color	focusColor = Colors::DARK_GRAY,
		Color	backgroundColor = Colors::WHITE
	)

Constructs a button.

Parameters

text	Button label text.
position	Position of the button (z is the layer).
foreColor	Label text color.
hoverColor	Background color while hovered.
focusColor	Background color while pressed.
backgroundColor	Default background color.

Member Function Documentation

getTexture()

Texture * cangine::Button::getTexture

(

)

Returns the button's background texture.

Returns

The current texture.

onClick()

void cangine::Button::onClick ( const MouseEvent *  e )

private

Invokes all registered click handlers.

Parameters

e	Mouse event that triggered the click.

registerOnClickEvent()

void cangine::Button::registerOnClickEvent ( std::function< void(const MouseEvent *)>  handler )

inline

Registers a callback invoked when the button is clicked.

Parameters

handler

Click handler to add.

setTexture()

void cangine::Button::setTexture

(

Texture *

textureIn

)

Sets the button's background texture.

Parameters

textureIn

Texture to use.

Friends And Related Symbol Documentation

ButtonComponent

friend class ButtonComponent

friend

Member Data Documentation

btnComponent

ButtonComponent* cangine::Button::btnComponent

private

Component driving button behavior.

onClickHandlers

std::vector<std::function<void(const MouseEvent*)> > cangine::Button::onClickHandlers

private

Registered click callbacks.

---

The documentation for this class was generated from the following files:

• cangine/src/cangine/engine/gameobjects/ui/button_object.hpp
• cangine/src/cangine/engine/gameobjects/ui/button_object.cpp
